DJY Series Motor-driven Reducing Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

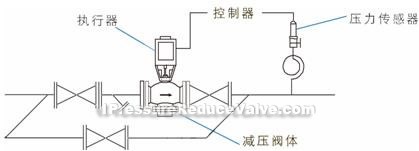

product drawing
DJY series motor-drivenreducing valves
production summary
DJY Series electric pressure reducing valve is the typical application of pressure control field for electric control valve. By adjusting the primary side of the fluid dynamic head and to control the backvalve pressure.

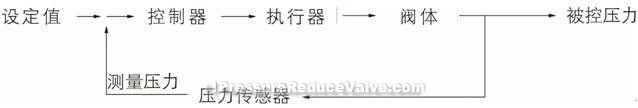

production composition
Adopt PI controller, electronic-type all-in-one electric actuator, pressure sensor, pressure reducing balve body.
application area
steam pressure adjust for heat-exchange station heat-source and producing processing equipment； HAVC, Pressure adjust for drainage system or equipment water； hydraulic pressure control.
production advantages
electric stepless adjust, twice pressure stable； Simple operation, simply by modified twice pressure setting; controller, Smooth operation, long service life.
| Production name | RWD68 electronic-type pressure controller | Standard enclosure | QBE2000pressure sensor |
| Working voltage | AC24V | Power consumption | 3.0VA |
| Outlet signal | DC0-10V | Environment temperature | 0-+50℃ |
| Inlet signal | 0-10VDC signal | Environment humidity | ＜95%r.n. |
| Measuring range of controller | 0.02-4.0mpa | Long-distance line match | Diameter 0.6mm cable, the max. distance 300m |
| type | nominal diameter | controller | execute machine | sensor | range |
| DJY | DN32 | RWD62 RWD68 SYNCO200 SYNCO700 | SQX... | QBE2002-P1 QBE2002-P2 QBE2002-P4 QBE2002-P5 QBE2002-P10 QBE2002-P16 QBE2002-P25 QBE2002-P40 | 1bar 2bar 4bar 5bar 10bar 16bar 25bar 40bar |
| DJY | DN40 | SKD... | |||
| DJY | DN50 | ||||
| DJY | DN65 | SKB... | |||
| DJY | DN80 | ||||
| DJY | DN100 | ||||
| DJY | DN125 | SKC... | |||
| DJY | DN150 | ||||
| DJY | DN200 | ||||
| DJY | DN250 |
